アンカリング(Smart Anchoring System)

南の島での滞在はアンカリングが基本となる。
欧米先進国のような完備されたマリーナは、ほとんどない。
入り江や湾に投錨し、テンダー(足船)で上陸するのが基本となる。
停泊も航海も同じで、天気はいつも移り変わる。
停泊中に時化に襲われることも珍しいことではない。
キャリバーヨットのアンカリング設備は、そのような事態をも想定して造られている。
2組のアンカー(双錨)が打て、チェーンやロープが外れないような金物の付いた丈夫なアンカーローラー、時化の海でも耐えられるよう、充分に強度のあるバウチョック。
これ等、アンカリング設備に必要なすべての部品は、キャリバーヨットで設計をした特注品が使用されている。
また、アンカーローラーは、少し前方に突出たバウスプリットの上にあり、この部分に無理な力がかかっても耐えられるよう、アンカーを止める部分だけではなく、船首下部に特別補強を入れたステンレス金物とターンバックル付ワイヤーで、ステムに強固に固定されている。
もちろん充分な収納が必要なチェーンロッカーは大きく、ロードのかかるウィンドラス取付け部分は、特別補強をされた構造になっている。

SMART ANCHORING SYSTEMTM-- REST ASSURED. WE HAVE TAKEN CARE OF ALL THE DETAILS, SO ALL THAT YOU HAVE TO DO IS TO GET A RESTFUL NIGHT'S SLEEP.
SMART ANCHORING SYSTEM Caliber owners are serious sailors. And part of serious sailing is having a serious anchoring system. We know that security on the hook results in securing a good night's sleep. You can rest assured with the Caliber Smart Anchoring System?. From the specially designed anchor rollers, to the specially designed anchor rode lockers, we have taken care of it all. Caliber Smart Anchoring System? will provide you with everything you need to stay securely in place even during the worst storm conditions.
SMART ANCHORING SYSTEM

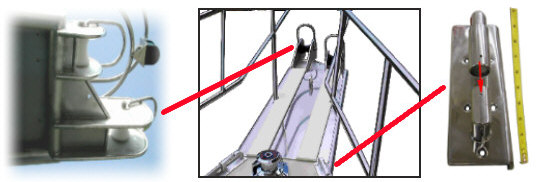

Specially designed UHMW* rollers to prevent rode jumping. Rollers are mounted on heavy duty stainless brackets with chafe protection beading welded along the edges. Note the stainless security bails to help keep the stowed anchors securely in place.
Heavy-duty all stainless dual anchor platform with replaceable polymer scratch preventers. Designed for ease of launching and retrieving serious sized anchors used by serious cruising sailors. An extended platform keeps the anchor off the deck and away from accidentally impacting the hull.
Custom designed and custom manufactured stainless steel mooring/anchoring chocks. That will keep anchor rode in place even during storm conditions with a heavily pitching bow.
Caliber Smart Anchoring SystemTM
4Extra strong bitter end anchor rode attachment point
4Anchors stay out on platform keeping mud off deck
4Replaceable heavy King Starboard chain runners help prevent chain scratching
4Extended anchor platform prevents anchor from impacting hull when raising or lowering
4Chain lockers specially designed to help prevent chain pile up
4Large specially designed UHMW* rollers prevent rode from jumping and chafing.
4Extra heavy duty mounting pad for windlass
4Large chain lockers make washing rodes easy
4Security bails to keep anchor and rode on rollers
4Custom designed and manufactured closed chock system prevents rode jumping
4Extra strong water level anchoring/towing/sea anchor attachment point eliminates chafe and makes for less tacking at anchor
4Dual heavy stainless steel reinforced anchor roller holders with chafe resistant beading
*Ultra High Molecular Weight Polyethylene is light weight, has a high tensile strength, is self lubricating, shatter resistant, and abrasion resistant as well.
SMART ANCHORING SYSTEM
Super secure anti-chafe attachment point. Can be used as an emergency towing point. Or sea anchor attachment point as well as a storm anchor attachment point that is 100% chafe free. Securing low on centerline also keeps anchor tacking to a minimum.
